Check the details of the USB device made with Deploy Media Creator

Details

Deploy Media Creator records information on the Deploy/Recovery USB device or through the ImageCast client PC to prevent unauthorized use. This article explains how to use the program and view the recorded information. Running the program does not change or affect the USB device.

When to Use
Use this program if you have multiple product keys.
If you launch Deploy Media Creator without registering a product key in the License Management window, you may see an error. Use this program to check the displayed product key and enter it into the License Management window.

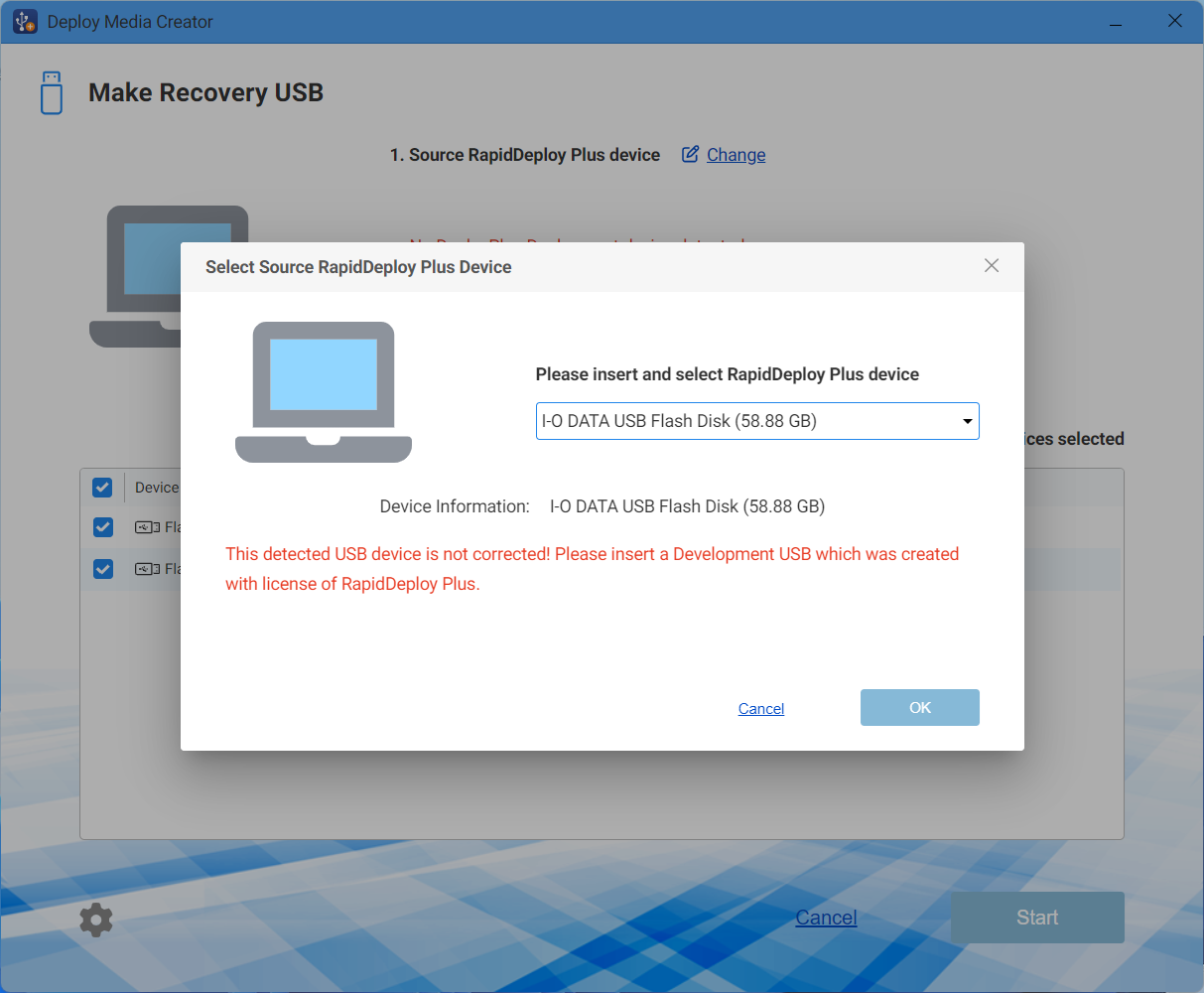

1) When choosing [Create Recovery USB Device], if you plug in the Deployment USB and select it, you’ll see an error message and the Recovery USB cannot be created.

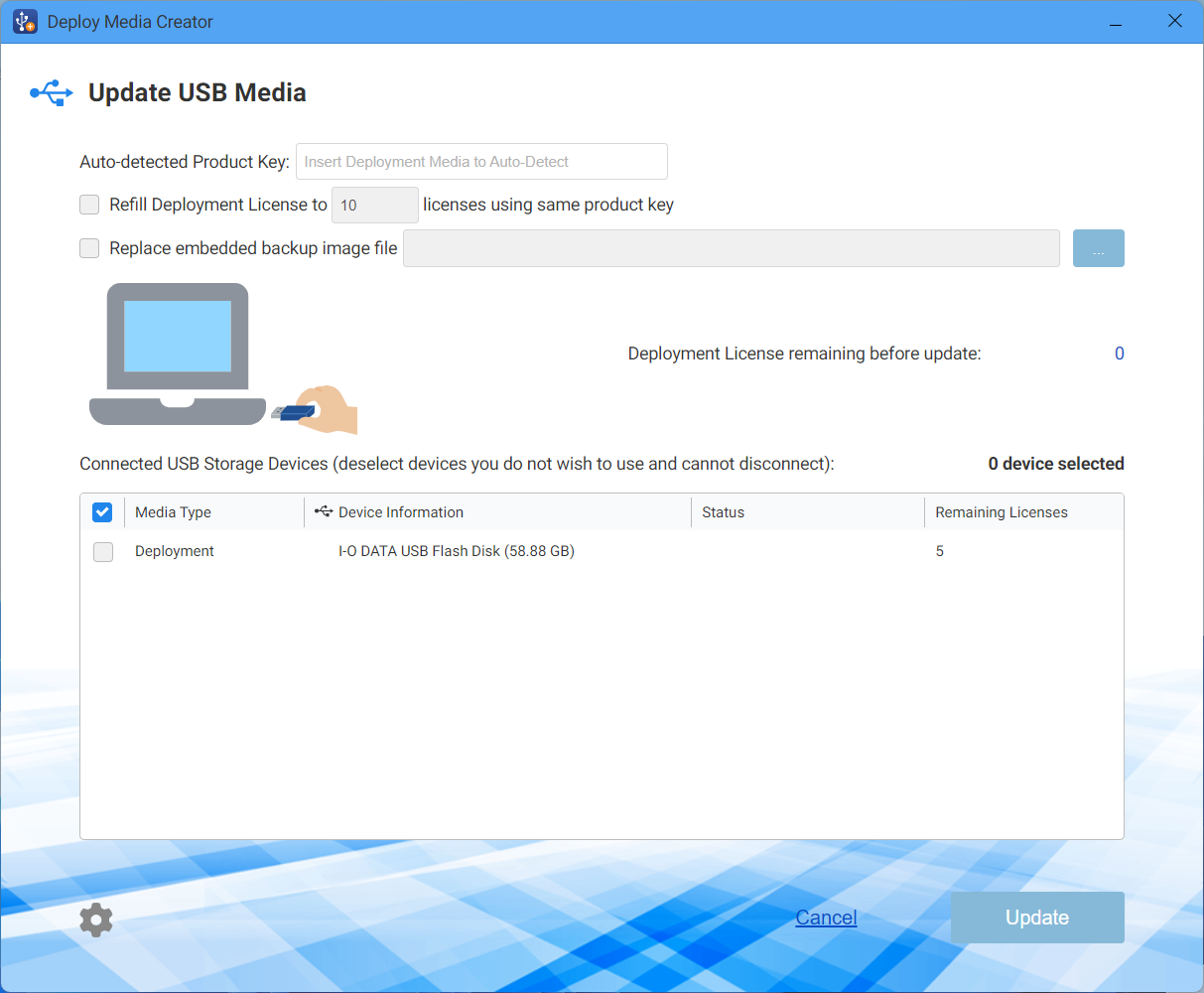

2) When selecting [Update existing USB Deployment Device] and plugging in the Deploy USB, the product key isn’t automatically detected.

Program
https://s3.ap-northeast-1.amazonaws.com/kb.s3.actiphy.com/new_kb_attachments/ShowRdd1.1.5.39.zip

Operating Procedures
Plug in the USB device to check it. If multiple USBs are connected, info for all will be shown.

1) Download the program from the link below and unzip the file.
2) Insert the target USB and double-click ShowRdd.exe.
3) When asked "Do you want to allow this application to make changes to your device?", click Yes.

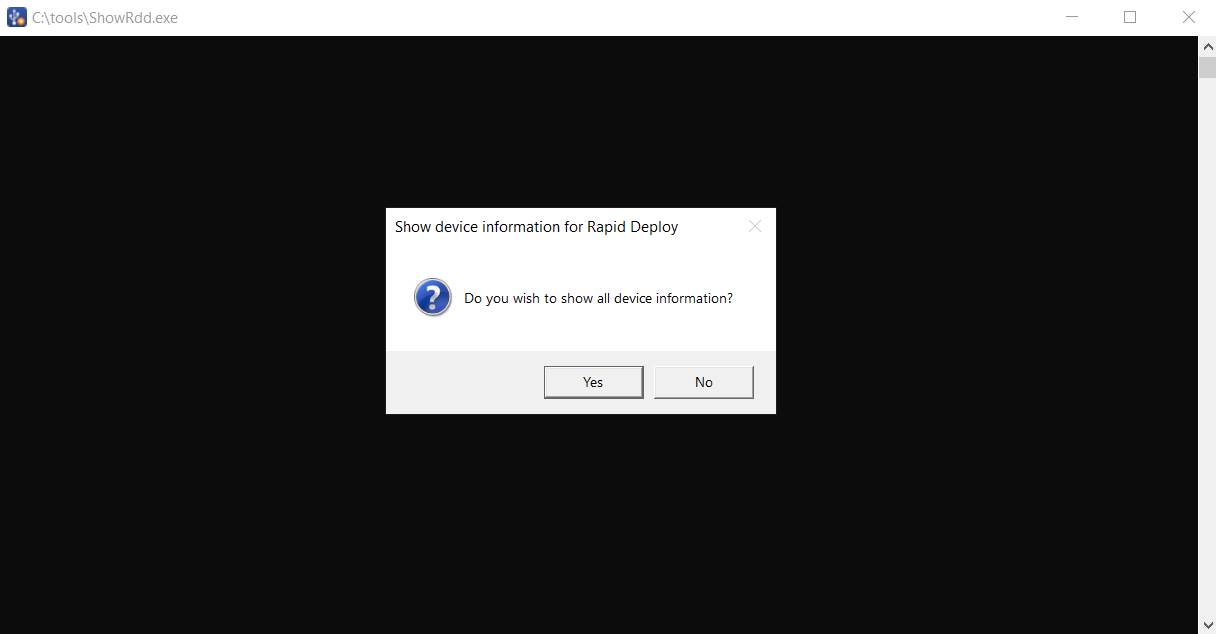

4) When a message appears in the terminal, click Yes again.

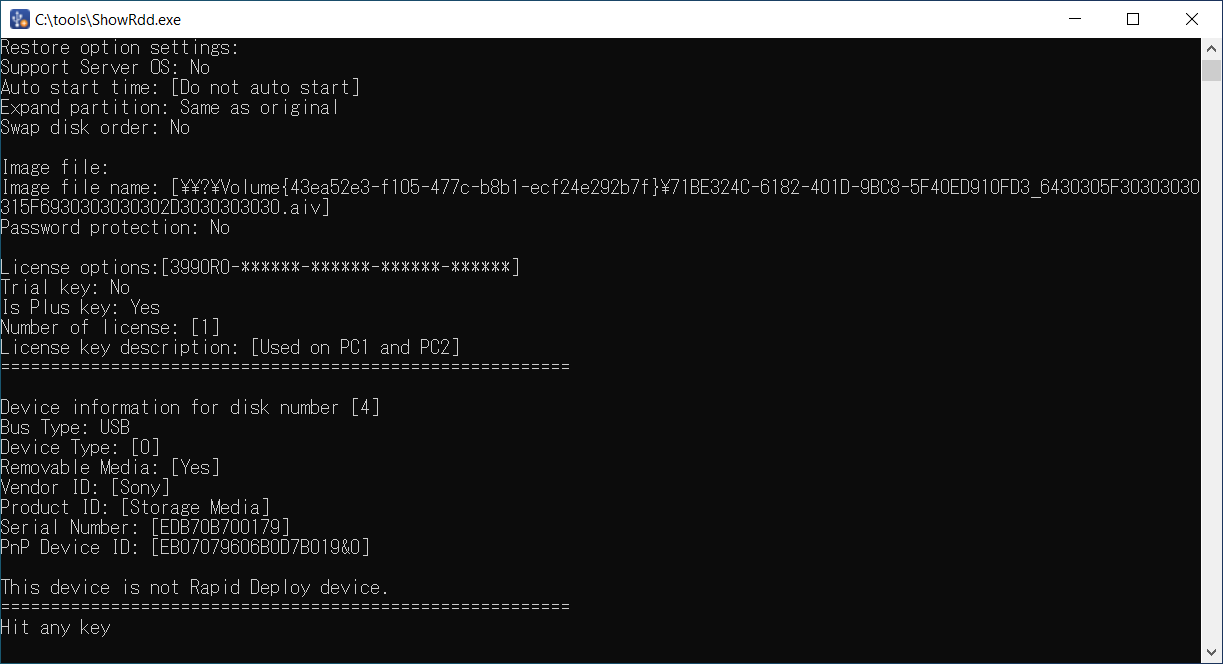

5) The status of all connected external devices is shown, and “Hit Any Key” appears at the end. The results are not saved automatically. To save them (e.g., to Notepad), continue from step 6.

6) Right-click the top-left corner of the command prompt, go to [Edit] > [Select All]. Once everything is highlighted, right-click again to copy it to the clipboard.

7) Open Notepad, right-click, and choose Paste to add the copied content.

8) Return to the command prompt, press any key to close the program.

Output
Below is the output for each USB device, with comments added for some parameters.
Deployment

Device information for disk number [1]
Bus Type: USB
Device Type: [0]
Removable Media: [No]  #Yes for removable media. No for a stick-type USB or USB HDD.
Vendor ID: [JetFlash]
Product ID: [Transcend 128GB]
Serial Number: [AA00000000000489]
PnP Device ID: [8&66B0592&0&000000]
NOTE: PNP device ID of HDD/SSD is depend each PC.
Rapid Deploy settings information
Media Type: Deploy  #Deploy, Recovery, ImageCast Client（via ImageCast Server）
Language: [en-us]
Backup option settings:
Compression: Deduplication level 2
Password protection: Yes
Encryption: RC5
Description: [PC1 Backup] #Display the comment entered when creating USB media by using Deploy USB media.
Restore option settings:
Support Server OS: No
Auto start time: [10]
Expand partition: Same as original
Swap disk order: No
Image file:
Image file name: [\\?\Volume{6541f93b-308f-4b32-b9cf-ebd958c3bfd6}\C7F44DAA-C4CD-4859-9F83-57FD9E02F7DB_6430305F30303030315F6930303030302D3030303030.aiv]　#Output the image file name created in boot environment by using Deployment USB device.
Password protection: Yes
License options:[SYQPTS-******-******-******-******] #Display the first 6 digits of the product key selected when creating USB media by using Deploy USB media.
Trial key: No
Is Plus key: Yes
Number of license: [1]
License key description: [Use for PC1, PC2] #Display the comment input when registering the product key in Deploy Media Creator.
=========================================================

ImageCast Client

Device information for disk number [2]
Bus Type: USB
Device Type: [0]
Removable Media: [No]
Vendor ID: [JetFlash]
Product ID: [Transcend 128GB]
Serial Number: [AA00000000000489]
PnP Device ID: [8&1D081875&0&000000]
NOTE: PNP device ID of HDD/SSD is depend each PC.
Rapid Deploy settings information
Media Type: ImageCast Client #Deploy, Recovery, ImageCast Client（via ImageCast Server）
Language: [en-us]
Restore option settings:
Support Server OS: No
Auto start time: [Do not auto start]
Expand partition: Same as original
Swap disk order: No
Image file:
Image file is not exist on disk [2]
License options:
Trial key: No
Is Plus key: No
Number of license: [1]
License key description: []
=========================================================

Recovery

Device information for disk number [3]
Bus Type: USB
Device Type: [0]
Removable Media: [Yes]
Vendor ID: [I-O DATA]
Product ID: [USB Flash Disk]
Serial Number: [0975058520C0]
PnP Device ID: [07082CBB91969555&0]
Rapid Deploy settings information
Media Type: Recovery #Deploy, Recovery, ImageCast Client（via ImageCast Server）
Language: [en-us]
Restore option settings:
Support Server OS: No
Auto start time: [Do not auto start]
Expand partition: Same as original
Swap disk order: No
Image file:
Image file name: [\\?\Volume{8ee7488c-e641-42f6-a91b-8d429081ca61}\C7F44DAA-C4CD-4859-9F83-57FD9E02F7DB_6430305F30303030315F6930303030302D3030303030.aiv]
Description: [PC1 Backup] #Display the comment entered when creating USB media.
Password protection: Yes
License options:[SYQPTS-******-******-******-******] #Display the first 6 digits of the product key selected when creating USB media by using Deploy USB media.
Trial key: No
Is Plus key: Yes
Number of license: [1]
License key description: [Use for PC1, PC2] #Display the comment input when registering the product key in Deploy Media Creator.
=========================================================

USB media created without using Deploy Media Creator

Device information for disk number [4]
Bus Type: USB
Device Type: [0]
Removable Media: [Yes]
Vendor ID: [ELECOM]
Product ID: [MF-ABPU3]
Serial Number: [0277078180A0]
PnP Device ID: [07088A1A9F7D2771&0]
This device is not Rapid Deploy device.
=========================================================
Hit any key

Target Product

- Deploy Media Creator
