ADK was installed, but cannot create a Windows PE boot environment

Summary

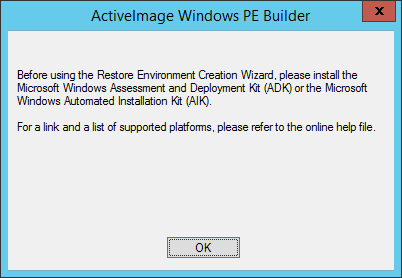

ADK was installed, but cannot create a ActiveImage Protector Boot Environment (Windows PE).

Cause

The latest ADK is not supported.

Resolution

1) Download the linked file below.

2) Replace binary files in the installation path.

– AipPebJpn.dll (version 1.5.202.252)
– CopyEx.exe (version 1.0.5.8)
– WinPeBuilder.exe (version 1.5.101.252)

3) Create a ActiveImage Protector Boot Environment (Windows PE).
– [Tools]>[Create Custom Recovery Disk]

Affected Products

ActiveImage Protector 3.5 SP4/SP5

---

Attachments

• aip_winpe.zip (1,863,658 bytes)

(13451072809369)
