LinuxBE On-Memory Boot

Summary

Boot LinuxBE using a DVD, etc., edit the grub menu, and switch to on-memory boot.

Operating Procedures

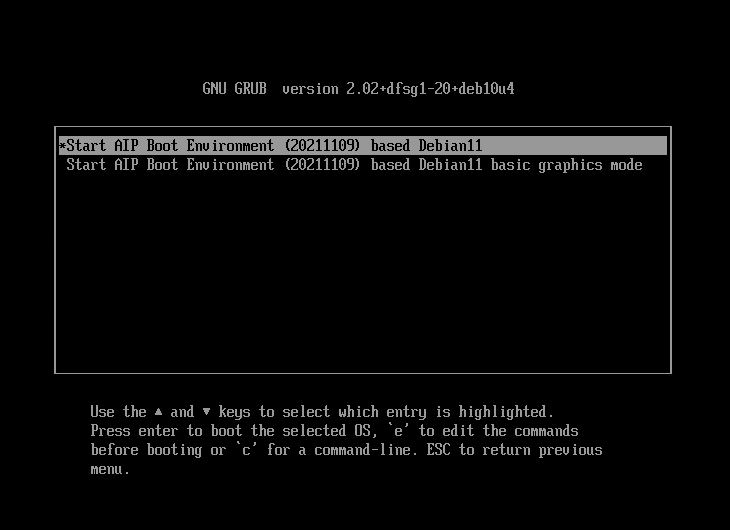

1)  When the grub menu appears, choose "Start AIP Boot Environment (yyyyMMdd) based Debian11" and press the "e" key on the keyboard.

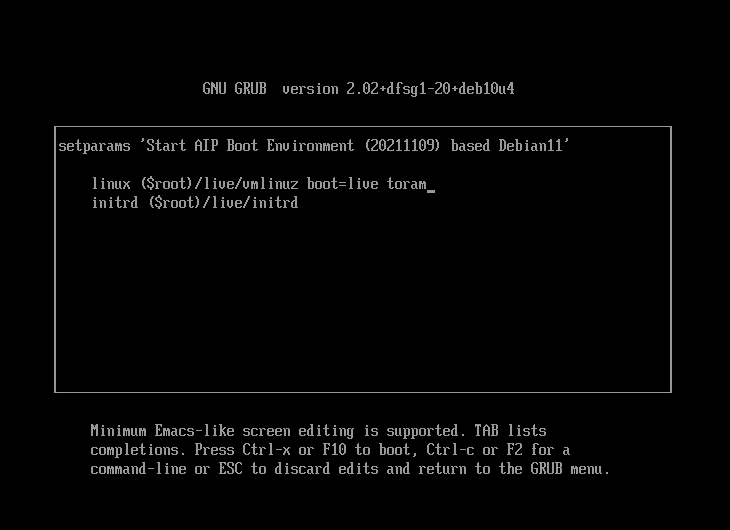

2) When the Edit window is displayed, enter “toram” after “linux ($root)/live/vmlinuz boot=live”.

3) Press Ctrl and “x” buttons at the same time, and boot up the boot environment.

4) Ensure on-memory boot of LinuxBE

When LinuxBE boots up, start terminal and run df command. When the following items are displayed, on-memory boot succeeded.
[ /dev/shm 1.1G 982M 49M 96% /run/live/medium ]

# df -h Filesystem     Size  Used   Avail Use% Mounted on udev           1.5G     0   1.5G    0% /dev tmpfs          299M  1000K  298M    1% /run /dev/shm       1.1G   982M   49M   96% /run/live/medium /dev/loop0     908M   908M     0  100% /run/live/rootfs/filesystem.squashfs tmpfs          1.5G   366M  1.2G   25% /run/live/overlay overlay        1.5G   366M  1.2G   25% / tmpfs          1.5G      0  1.5G    0% /dev/shm tmpfs          5.0M      0  5.0M    0% /run/lock tmpfs          1.5G    48K  1.5G    1% /tmp tmpfs          299M   140K  299M    1% /run/user/0

Target Product

ActiveImage Protector 2022
